Process Refractometer Verification with MT-1
Turn refractometer verification into a controlled, guided and documented workflow.
MT-1 guides the operator through the complete verification procedure, from selecting the verification liquid set to automatic pass/fail evaluation and PDF report generation.
User-defined verification sets, live measurement data, operator identification and documented results help make instrument verification more repeatable, traceable and easier to manage.
Verification often remains a manual process
Even when a process refractometer provides excellent diagnostic and measurement data, the verification procedure itself may still depend on manual instructions, handwritten notes, spreadsheets and separate report preparation.
This can create:
inconsistent execution,
transcription errors,
incomplete records,
operator dependency,
time-consuming documentation,
difficulty reviewing previous results.
MT-1 brings the complete verification workflow into the process analytics platform.
How the MT-1 verification workflow works

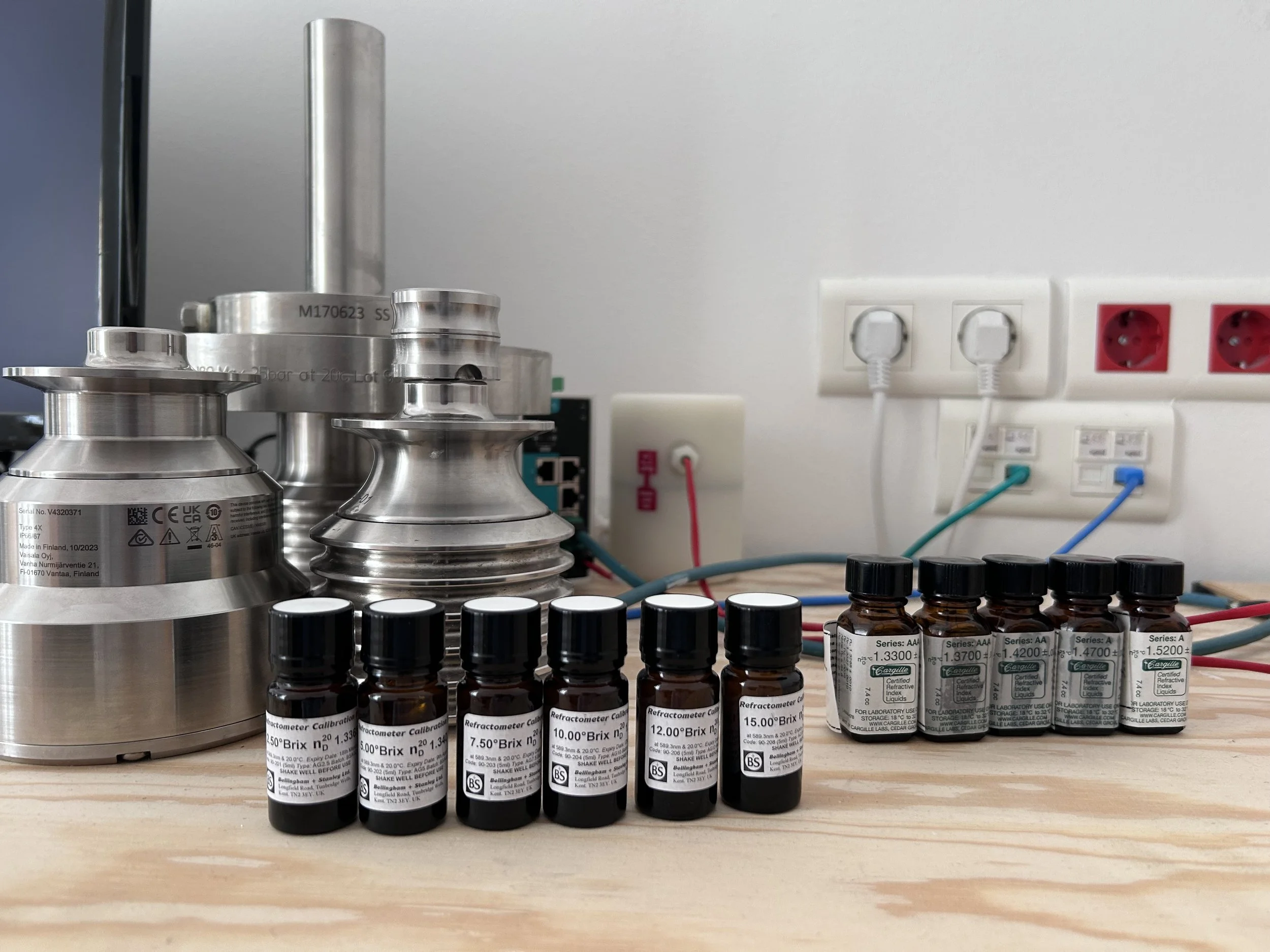

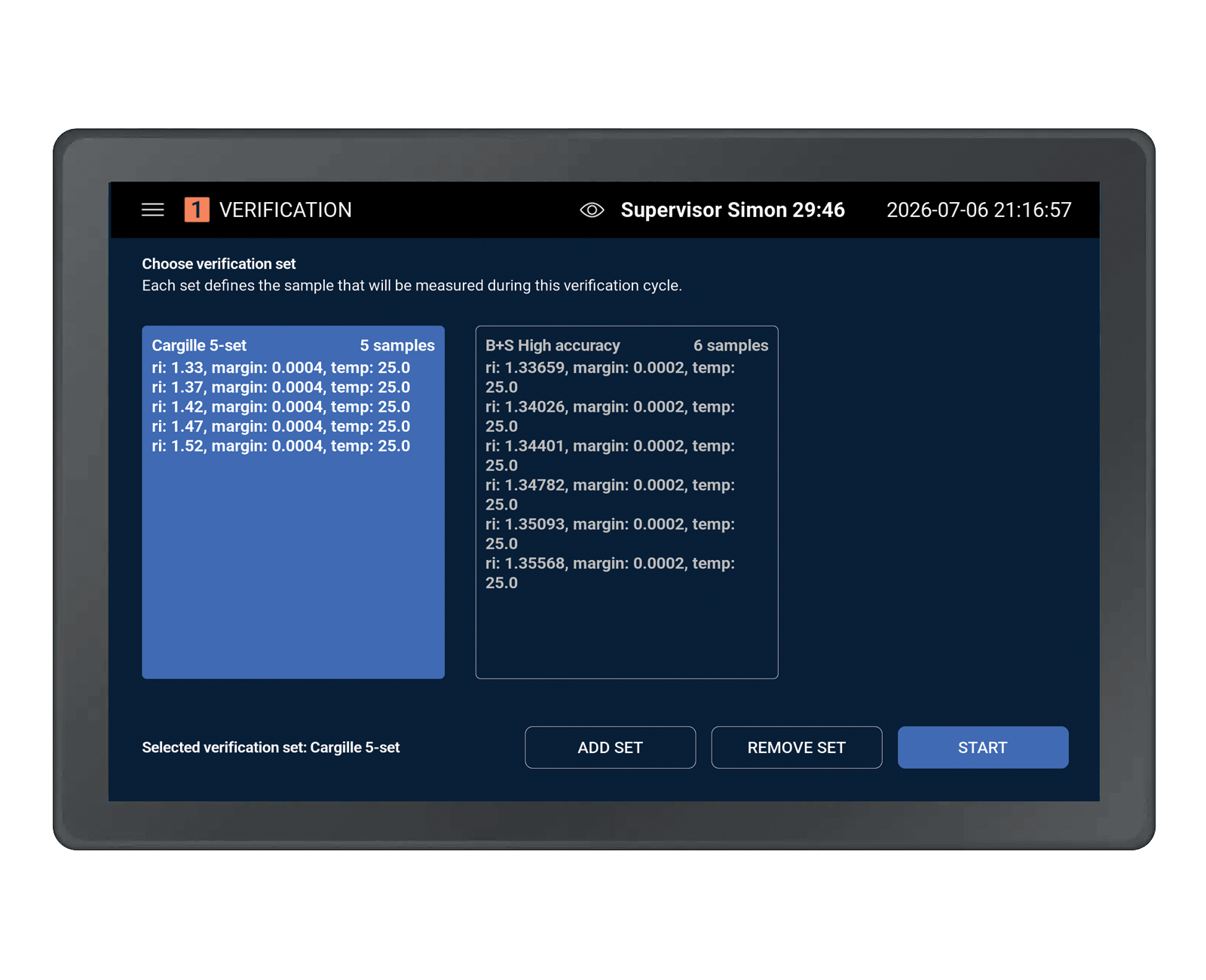

Choose a verification liquid set
The user selects a predefined verification set containing the required reference liquids, target RI values, tolerances and reference temperatures. New verification sets can be configured by authorized users.
Evaluate measurement stability

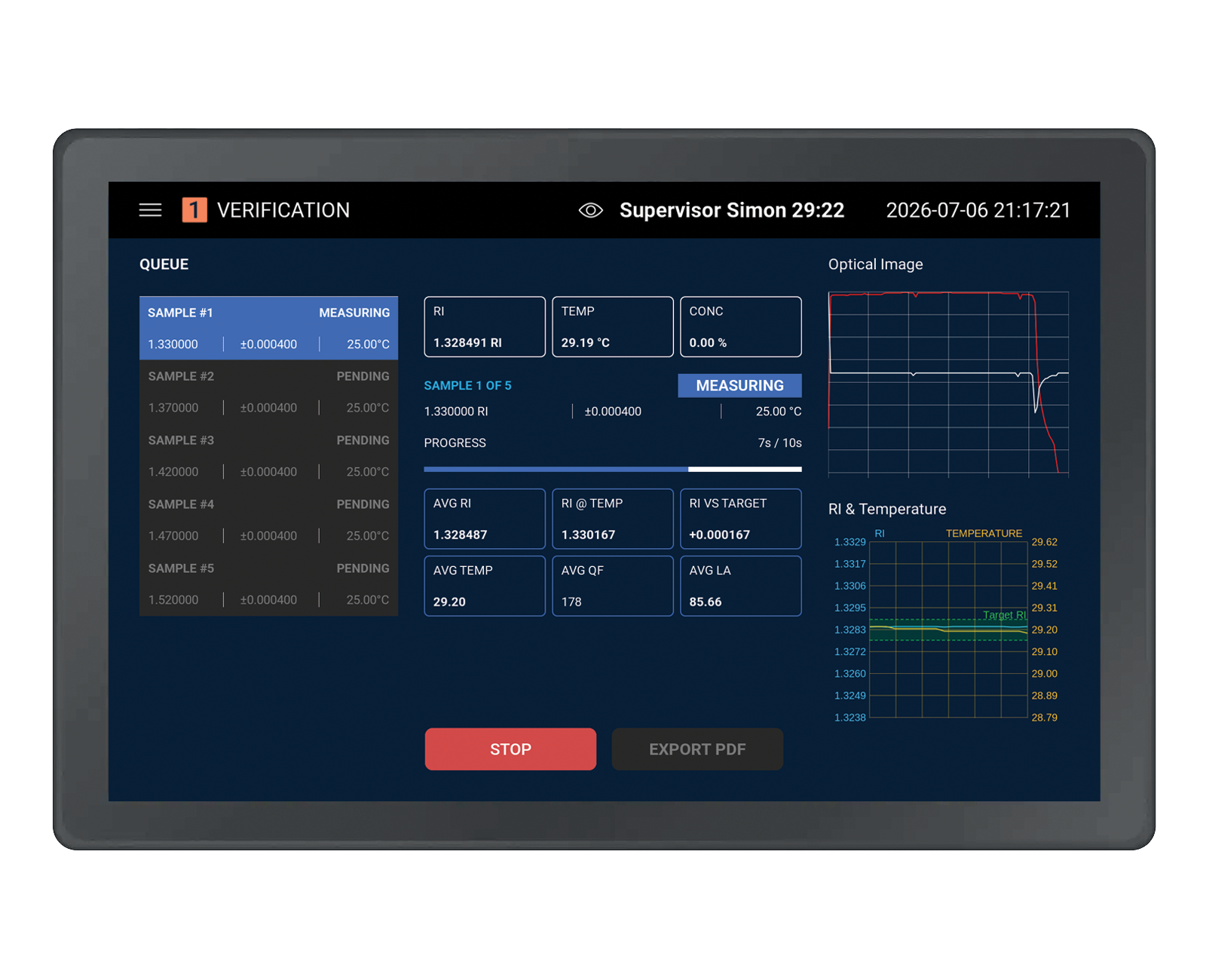

Live RI, temperature, optical image and diagnostic values help the operator follow the measurement and confirm a stable result.

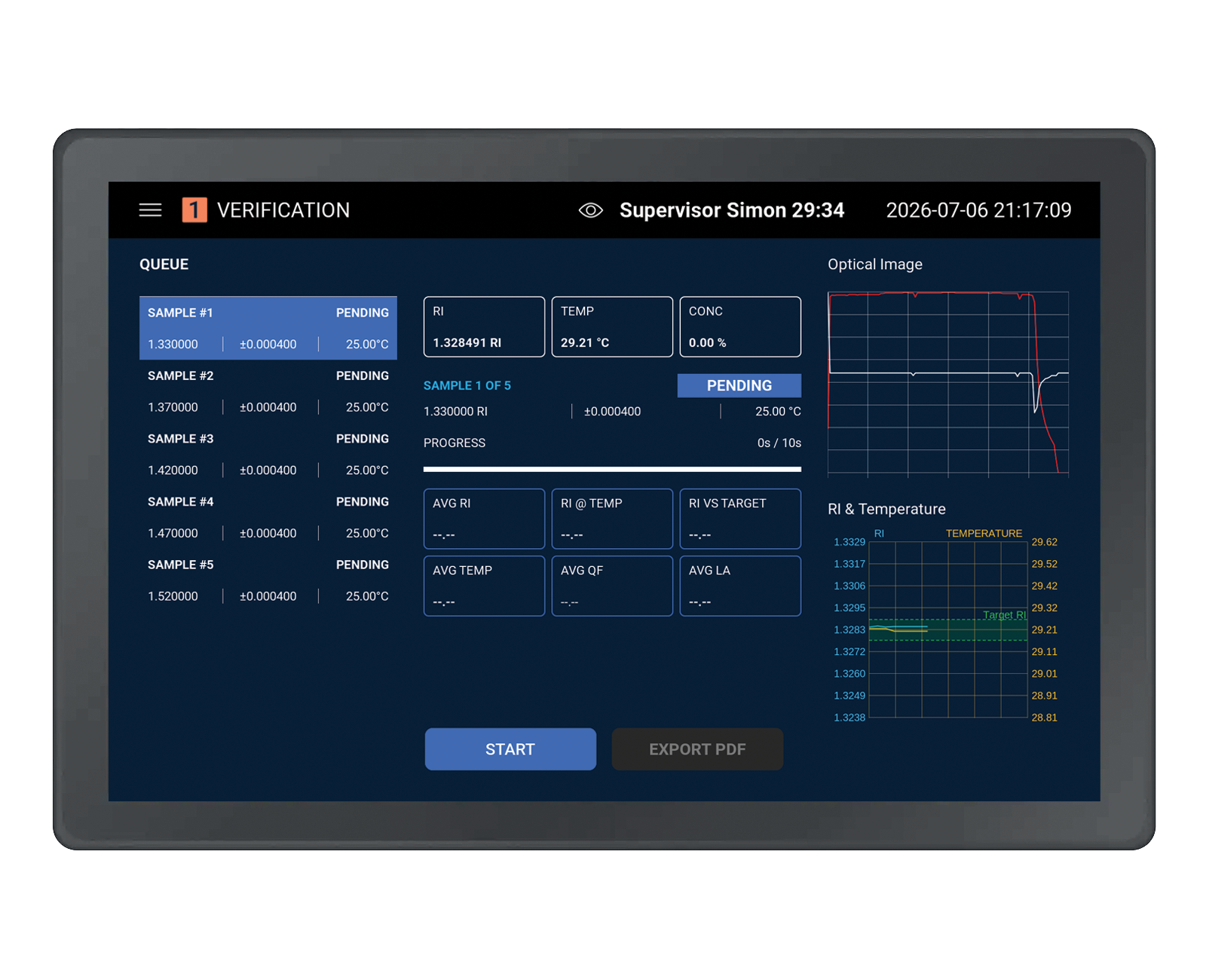

Measure each verification liquid

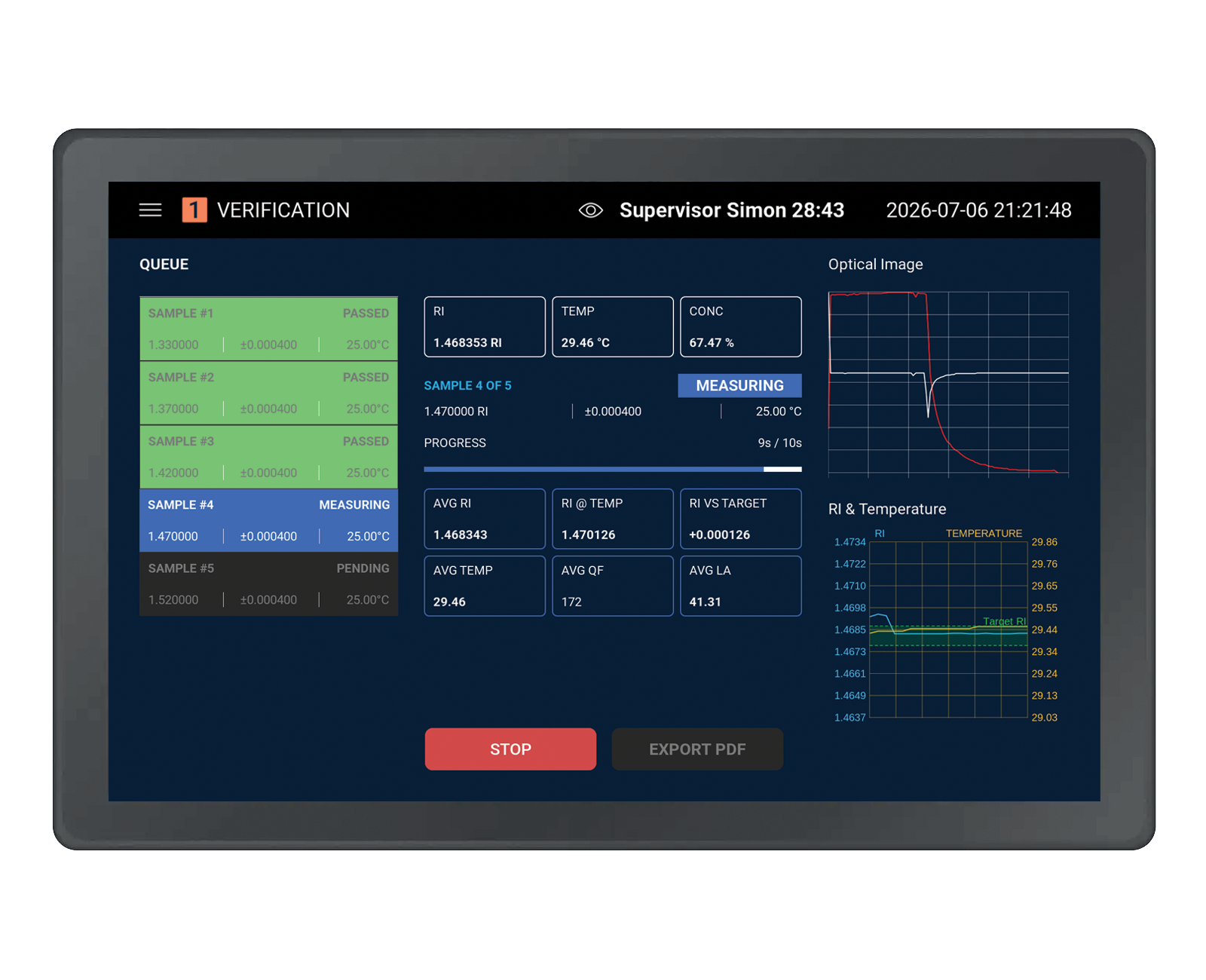

MT-1 guides the operator through the samples one by one and monitors the measurement in real time.
Repeat where required
Individual measurements can be repeated before the verification procedure is completed.
Calculate the verification result
MT-1 evaluates the measured RI against the target value and defined tolerance.

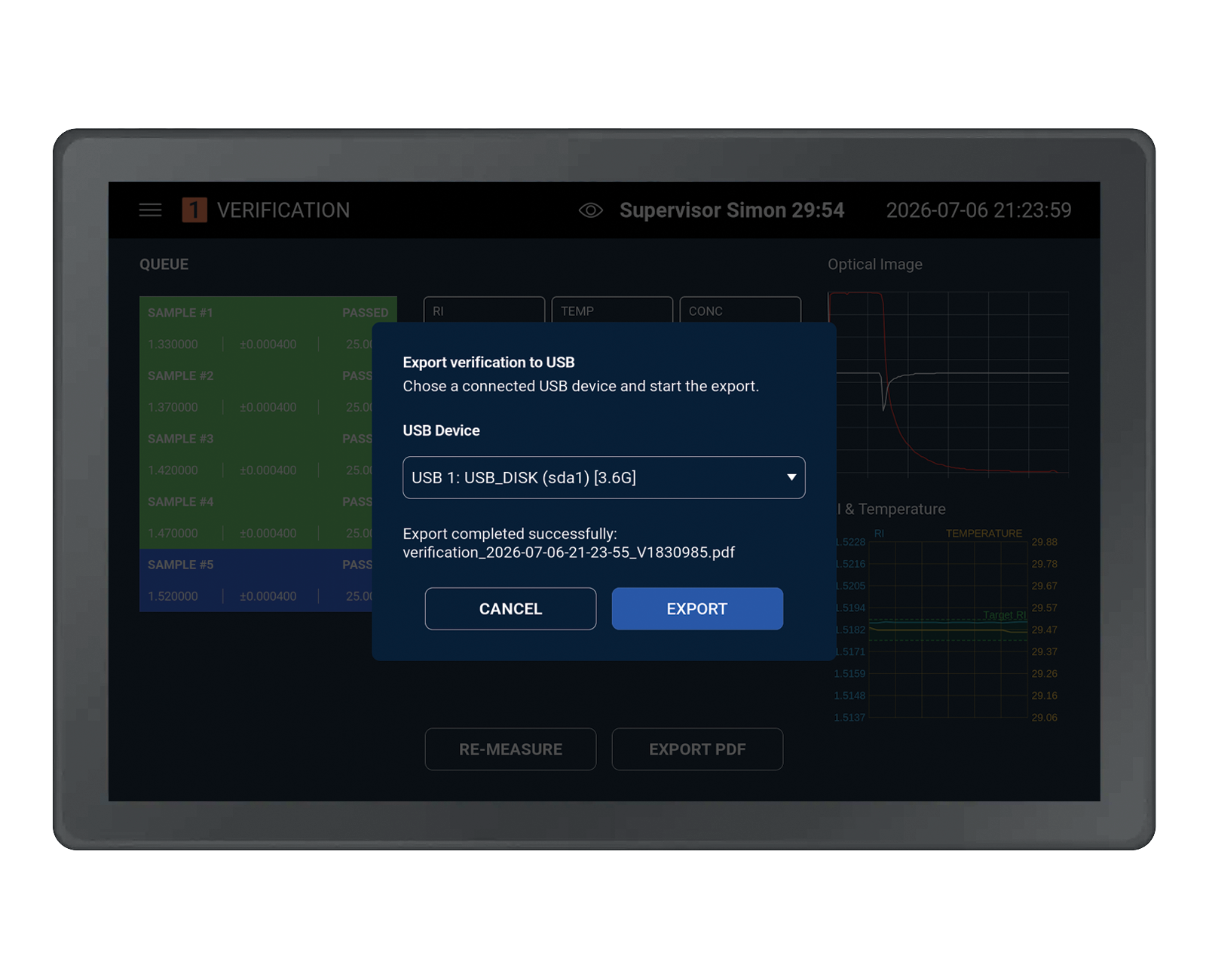

Generate the verification report
The completed procedure can be exported as a PDF verification report containing the verification results and operator information.
Use the verification standards that fit your procedure
Different refractometer manufacturers, applications and quality systems may use different verification liquids, RI ranges and acceptance limits.
MT-1 allows users to define and manage verification liquid sets containing:
number of verification samples,
target refractive index for each sample,
allowable deviation,
reference temperature.
The appropriate set can then be selected before starting the verification procedure, allowing the workflow to follow the applicable verification method.

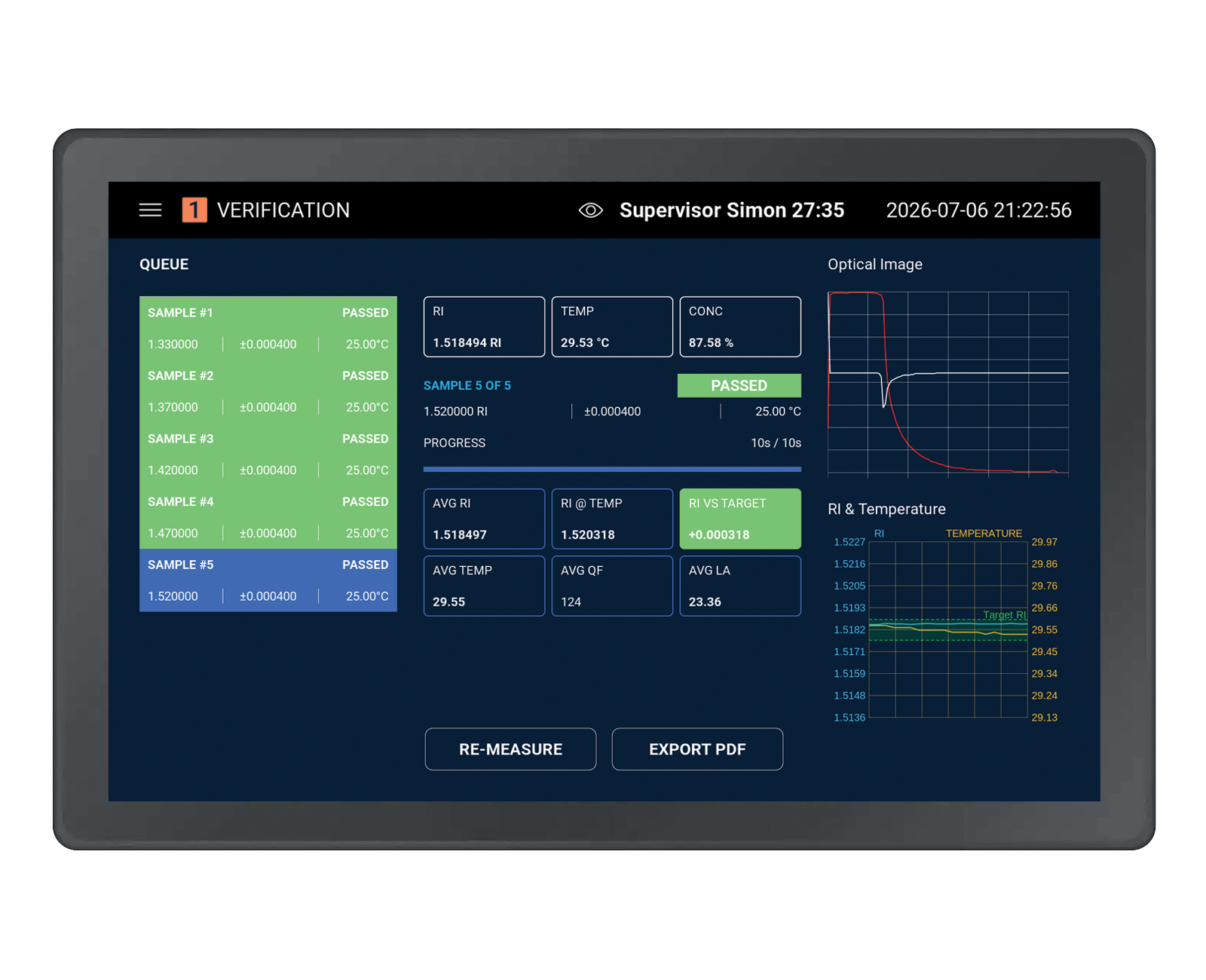

Automatic calculation and pass/fail evaluation
During each verification measurement, MT-1 calculates and displays:
measured average RI,
measurement temperature,
RI corrected to the reference temperature,
difference from the target RI,
acceptance result.
The sample is automatically evaluated according to the tolerance defined in the selected verification set.

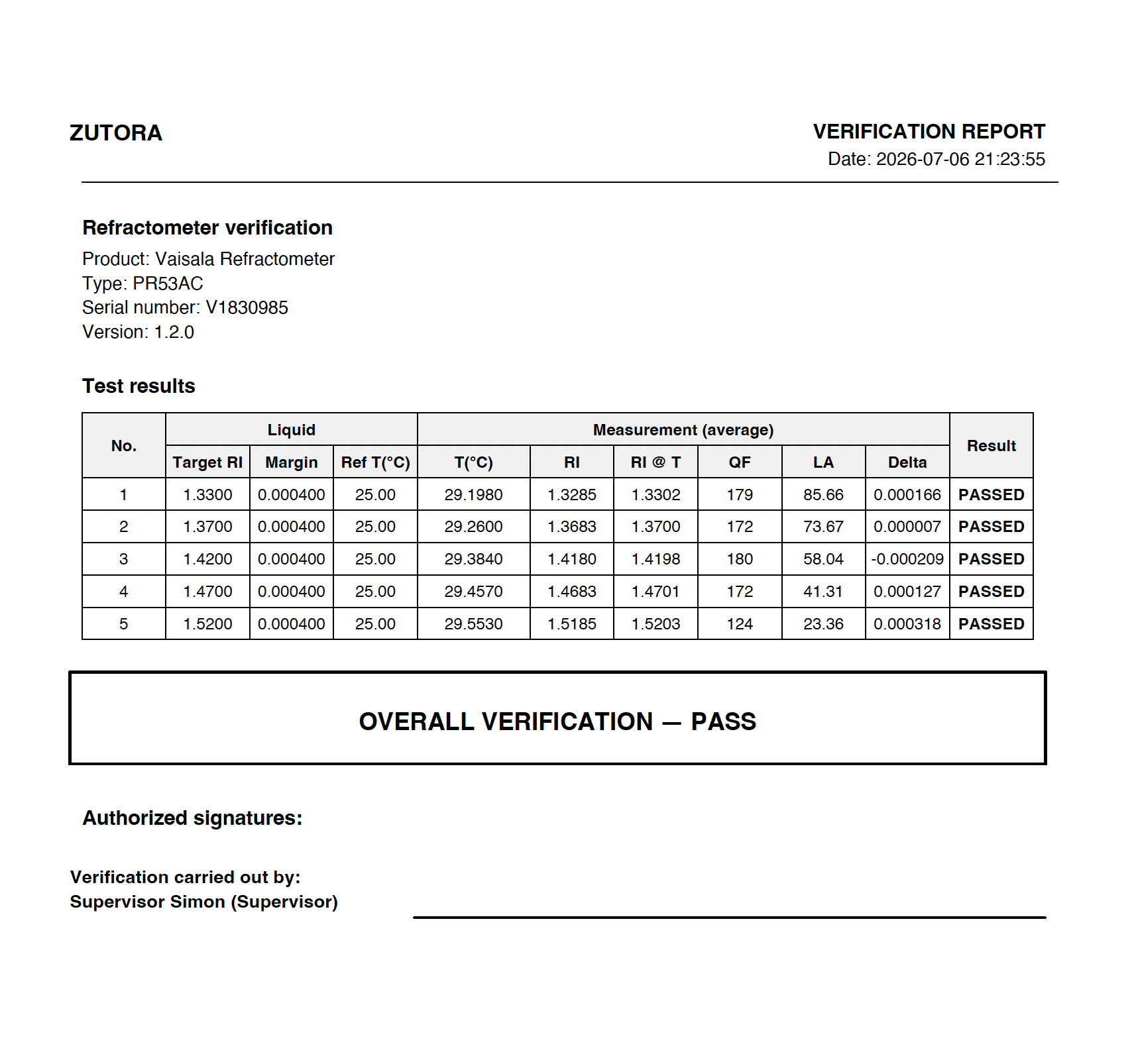

A complete documented result
After the verification is completed, MT-1 generates a PDF verification report.
This includes:
verification date and time,
instrument identification,
instrument software version,
target values and tolerances,
measured values,
pass/fail results,
overall verification result,
logged-in operator name.
Why this matters
Consistent execution
Every operator follows the same defined verification workflow.
Reduced manual calculation
MT-1 calculates deviations and evaluates acceptance automatically.
Flexible verification sets
Users can define verification liquids, target values, tolerances and temperatures according to the applicable procedure.
Operator traceability
The logged-in user is recorded as part of the verification result.
Immediate documentation
A PDF verification report can be generated directly after completion.
Better process visibility
Live RI, temperature, optical image and diagnostic information remain available during the procedure.
Frequently Asked Questions
-
Process refractometer verification checks whether the instrument is measuring within defined acceptance limits by comparing its reading with known reference liquids.
MT-1 turns this into a guided digital workflow with predefined verification sets, automatic result evaluation and documented reporting.
-
No. Verification checks whether the refractometer performs within defined limits.
Calibration establishes or adjusts the relationship between the instrument reading and the reference value.
The MT-1 workflow is designed to guide, evaluate and document the verification process.
-
The operator selects a predefined verification set and measures the reference liquids one by one.
For each sample, MT-1 displays the live measurement, temperature and optical image, records the result and compares the temperature-corrected RI value with the defined target and tolerance.
Each sample is evaluated automatically, and a PDF verification report can be generated after the procedure is completed.
-
Yes. Users can define verification sets according to the applicable procedure.
A set can include:
the number of verification samples,
target refractive index values,
allowable deviations,
reference temperatures.
Different sets can be stored and selected before starting a verification cycle.
-
Yes, provided the verification procedure and reference values are suitable for the connected refractometer and application.
MT-1 is not limited to one fixed liquid set. Users can configure verification sets based on the reference liquids used in their own procedure.
-
During each measurement, MT-1 can display and evaluate values such as:
average measured RI,
average temperature,
RI corrected to the reference temperature,
difference from the target RI,
pass/fail result.
The sample is evaluated according to the tolerance defined in the selected verification set.
-
MT-1 compares the evaluated RI result with the target value and allowable deviation defined for that sample.
If the result is within the defined acceptance limit, the sample passes. If it is outside the limit, the result fails.
-
Yes. Individual samples can be re-measured before the verification procedure is finalized.
This allows the operator to repeat a measurement when required.
-
The generated PDF report can include information such as:
verification date and time,
instrument identification,
target values and tolerances,
measured values,
pass/fail results,
overall verification result,
logged-in operator name.
The exact report content can depend on the system configuration.
-
Yes. The verification report includes the name of the logged-in user who performed the procedure.
This supports traceability and helps connect the verification result to the responsible operator.
-
Yes. MT-1 includes audit trail functionality and records relevant user and system actions according to the configured workflow.
This can support quality-oriented production environments where traceability of user actions and system events is important.
-
MT-1 combines the complete verification workflow in one system:
predefined verification sets,
guided sample sequence,
live measurement and diagnostics,
automatic calculations,
automatic pass/fail evaluation,
operator identification,
PDF report generation,
audit trail support.
This helps make refractometer verification more repeatable, traceable and easier to document.
Make refractometer verification easier to execute and document
MT-1 turns process refractometer verification into a guided digital workflow with configurable verification sets, automatic pass/fail evaluation, operator traceability and PDF reporting.
